Product Description





Features

l Top hung ball bearing with smooth feeling

l weather seals provide a high degree of weatherproofing and acoustic performance.

l retractable flyscreen install at interior or exterior

l 220,330,321,431,550,532,660,633,752,743 etc.,available

l Heavy duty with 3m height

l Glass accommodate up to6.38-19mm

l Laboratory tested and NATA certified to comply with Australian Standards AS2047 & NFRC NOA

l Acoustic (up to a maximum STC 39) and WERS energy rated products available.

Performance

1.Wind Pressure:Serviceability design wind pressure

                                  3000 Pa

                                  Rating: N6/C4 (General)

2..Air Infiltration Test--Test method AS4420.4-1996

                         75 Pa: 0.1 L/s·m 2 ;

                        -75 Pa: 0.1 L/s·m 2 ;

                        Average air leakage rate: 0.1 L/s·m 2

                        Rating: Low

3.Water Penetration Test: Test--Test method AS4420.5-1996

Test Pressure: 900 Pa N6/C4(Exposed)

4.Ultimate strength test--Test method AS4420.6-1996

Test Pressure: 4500 Pa

Rating: N6 /C3(General)

Profiles	6063-T5 high quality thermal break aluminium profile, thickness 2.0 mm   6063-T5 high quality non-thermal break aluminium profiles, thickness 2.0 mm PVC/UPVC profiles
Glass	Double toughened glazing:5mm 12A 5mm (A:Air);5mm 12A 5mm tinted; 5mm 12A 5mm Low-E; 5mm 27A 5mm  Single toughened glazing: 3/4/5/6/8/10/12/15/19/21//6.38/11.76mm  Laminated glazing: 5mm 0.76 5mm, 5mm 0.38 5mm
Hardware	German brand: Roto, Siegenia, Geze Australian brand: Doric Chinese brand: Kinlong, Zhenjiang
Mesh	Stainless steel security mesh Aluminium security mesh Fiberglass flyscreen Retractable flyscreen
Finish	Powder coating Anodized Electrophoresis Wood grain Fluorine carbon coating

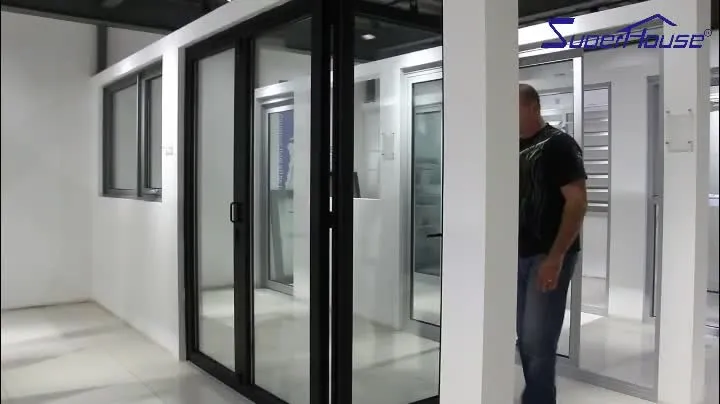

Factory view

Superwu is a specialized manufacturer of aluminium doors& windows; upvc doors& windows; Aluminum composite wood windows; aluminium aluminium handrails; shutters Located in shanghai, china.We enjoy convenient transportation. Our company occupies an area of 4000 square meter and with 80 staff and has advanced facilities of profiles cutting, welding machine and so on. Our annual production capacity is 100,000 square meter per year .

With 100% goods for exporting and our main market are for Australia, USA and Canada and so on. Our products gain wide praises abroad. Our company has won Australia Standad AS2047. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is Client first and superwu for a super life. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together.
