DESCRIPTION

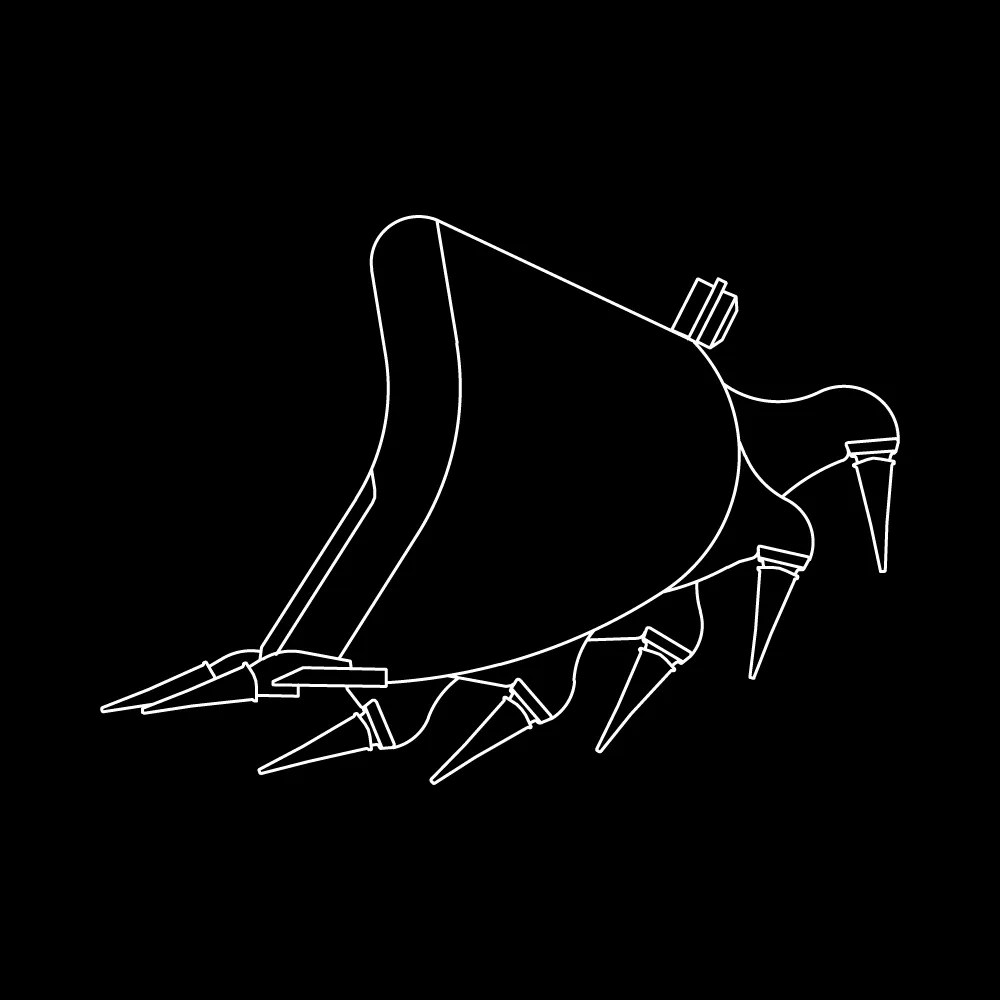

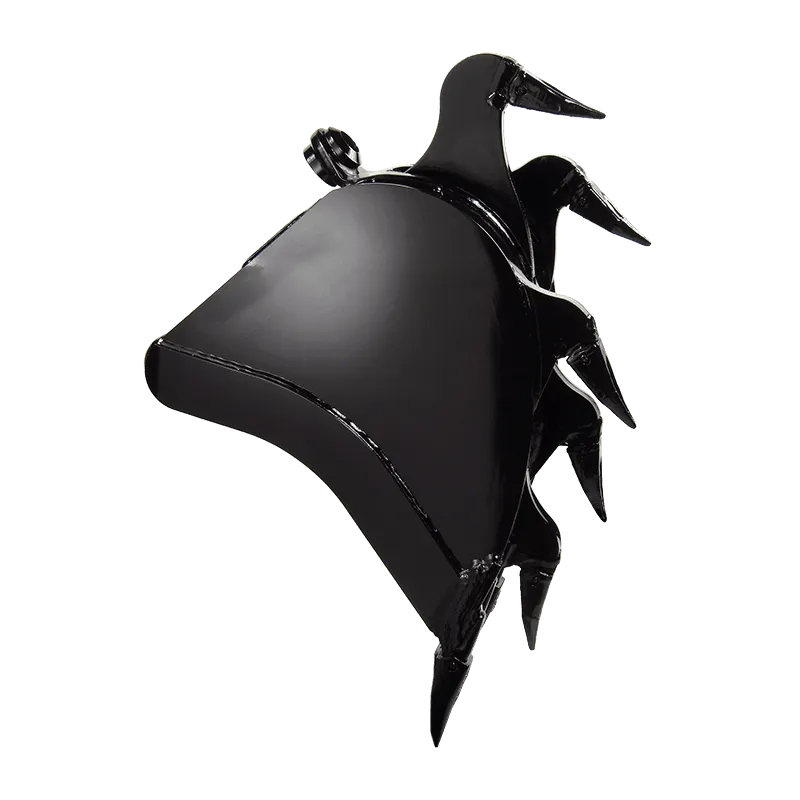

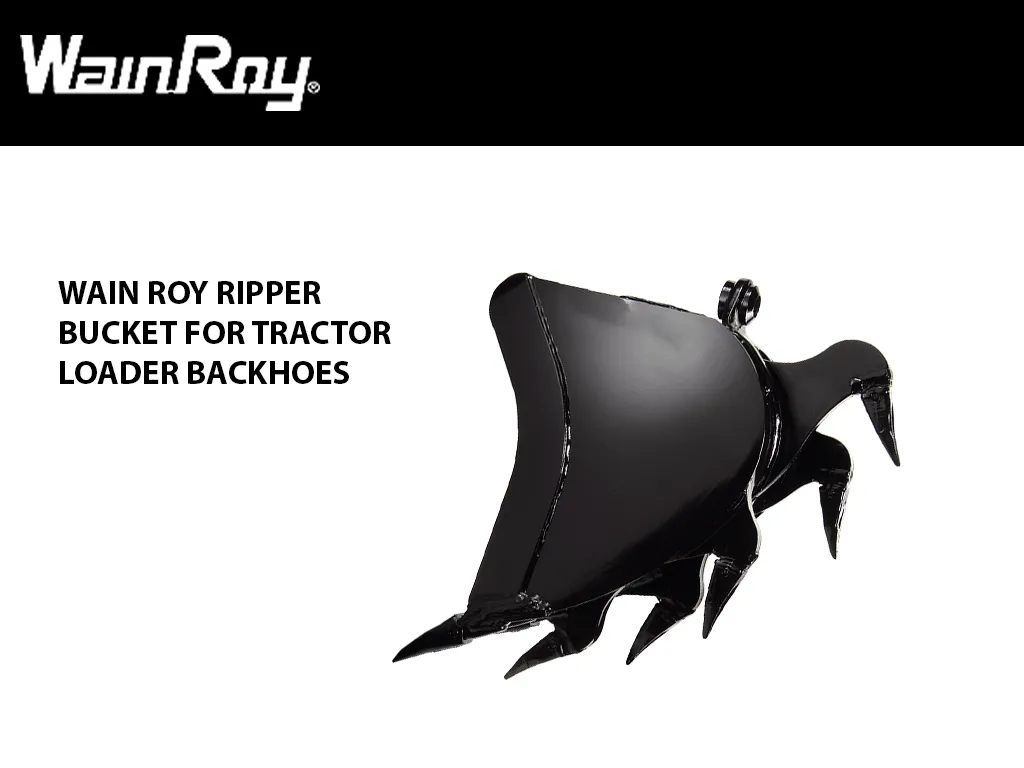

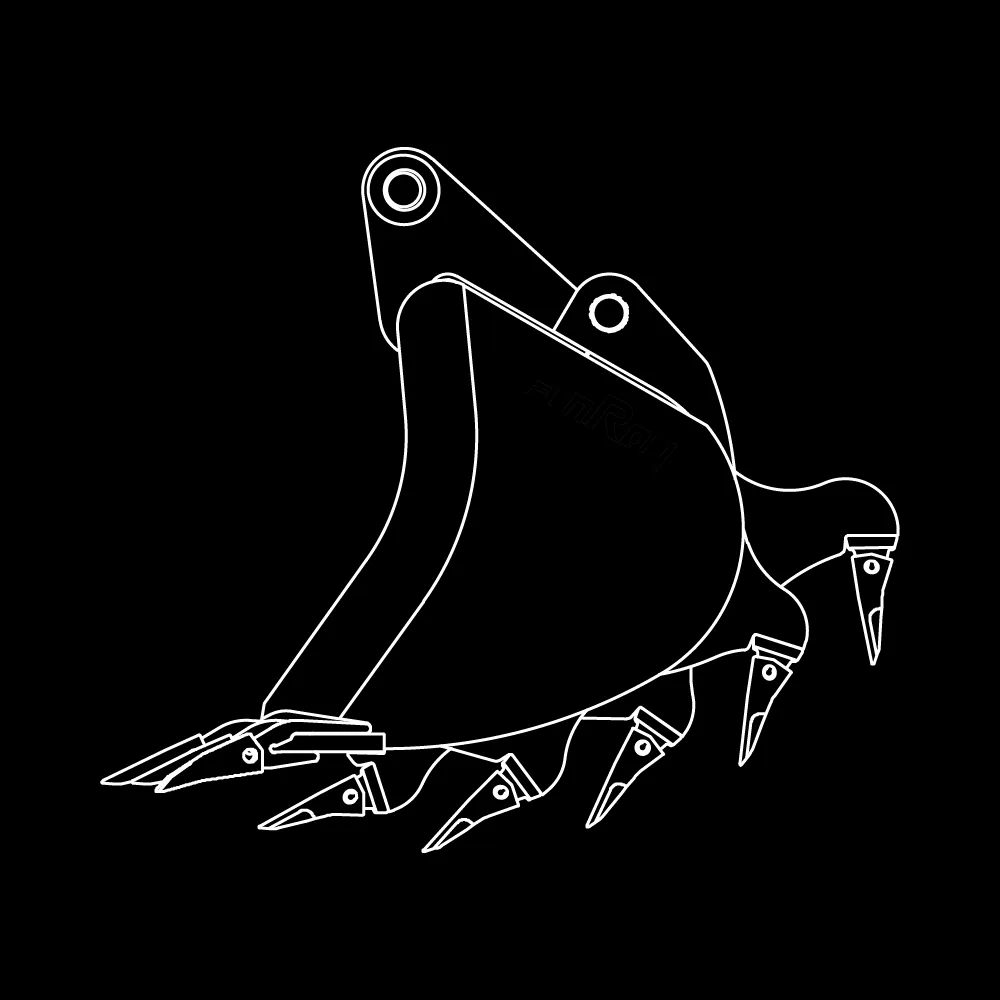

WAIN ROY RIPPER BUCKETS
Ripper Buckets are used in wide variety of severe applications where material is being both ripped and removed. Rip and dig with one attachment to increase performance and efficiency. As the current pass is dug and removed, the next pass is ripped and prepared. Standard applications for Ripper Buckets would include: frozen ground, sandstone, limestone, caliche, shale, coral, and other severe materials.
Bucket sizes shown are nominal. The Ripper Bucket will cut approximately 2 inches more than the nominal advertised width.
Tractor Loader Backhoes over 16,000 lbs.
SPECIFICATIONS
|
RIPPER BUCKET OEM PIN ON |
WIDTH | CAPACITY (CU. FT.) | LBS | CUTTING EDGE TEETH |
| RB2PO-16 | 16" | 6.8 | 650 |
3 |
| RB2PO-18 | 18" | 7.3 |
690 |
3 |
| RB2PO-24 | 24" | 8.9 |
800 |
5 |
| RB2PO-30 | 30" | 11.1 | 910 | 5 |
| RB2PO-36 | 36" | 13.2 | 1020 | 5 |
|
RIPPER BUCKET WAIN ROY XLS, ORIGINAL GANNNON, CP, TAG |
WIDTH | CAPACITY (CU. FT) | LBS | CUTTING EDGE TEETH |
| RB2QC-18 | 18" | 7.3 | 625 |
3 |
| RB2QC-24 | 24" | 8.9 |
735 |
5 |
| RB2QC-30 | 30" | 11.1 | 850 | 5 |
| RB2QC-36 | 36" | 13.2 | 960 | 5 |
FITS
| MAKE | OVER 16,000 LBS |
| CAT |
|
| JCB |
|
| JOHN DEERE |
|
| MECALAC |
|
